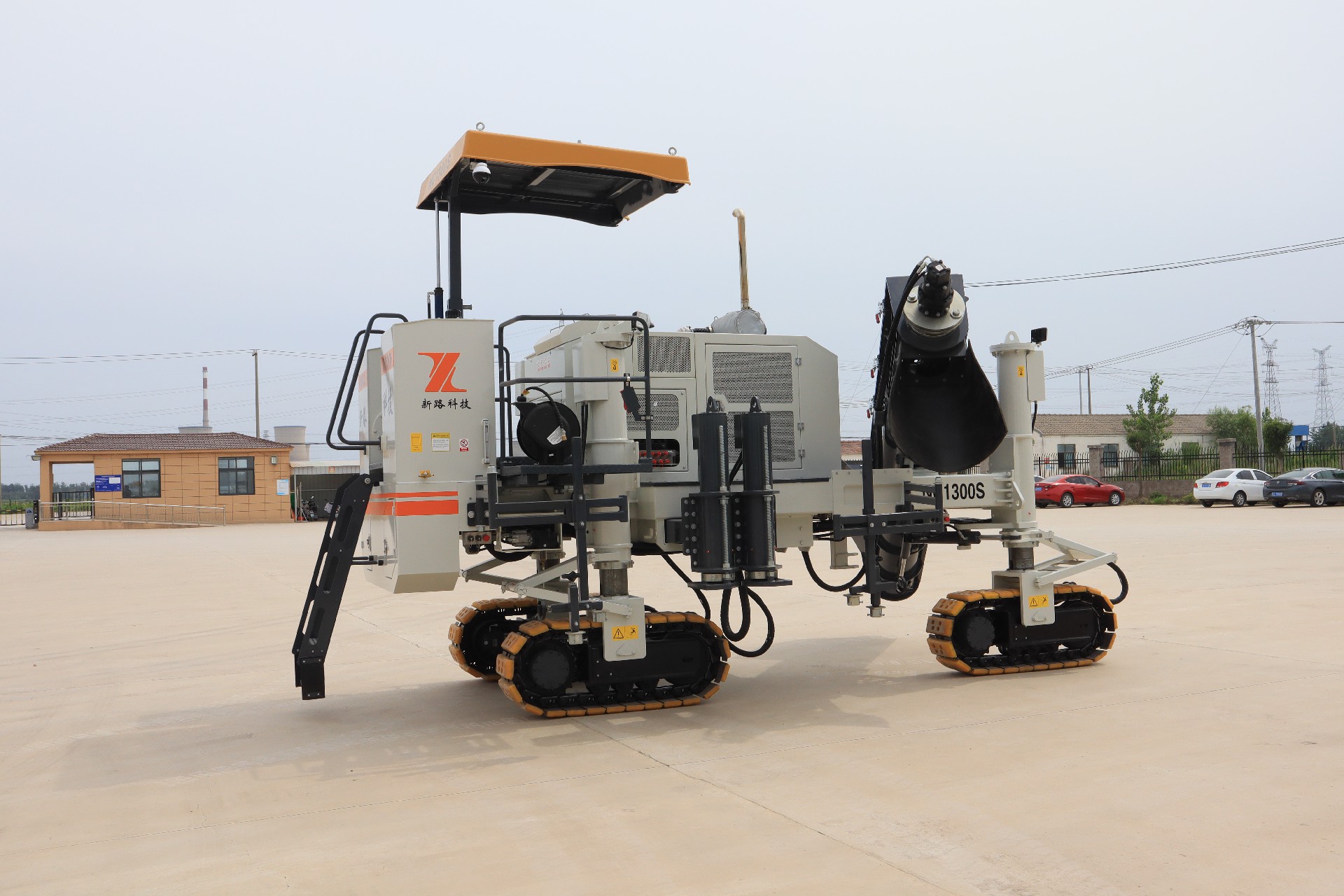

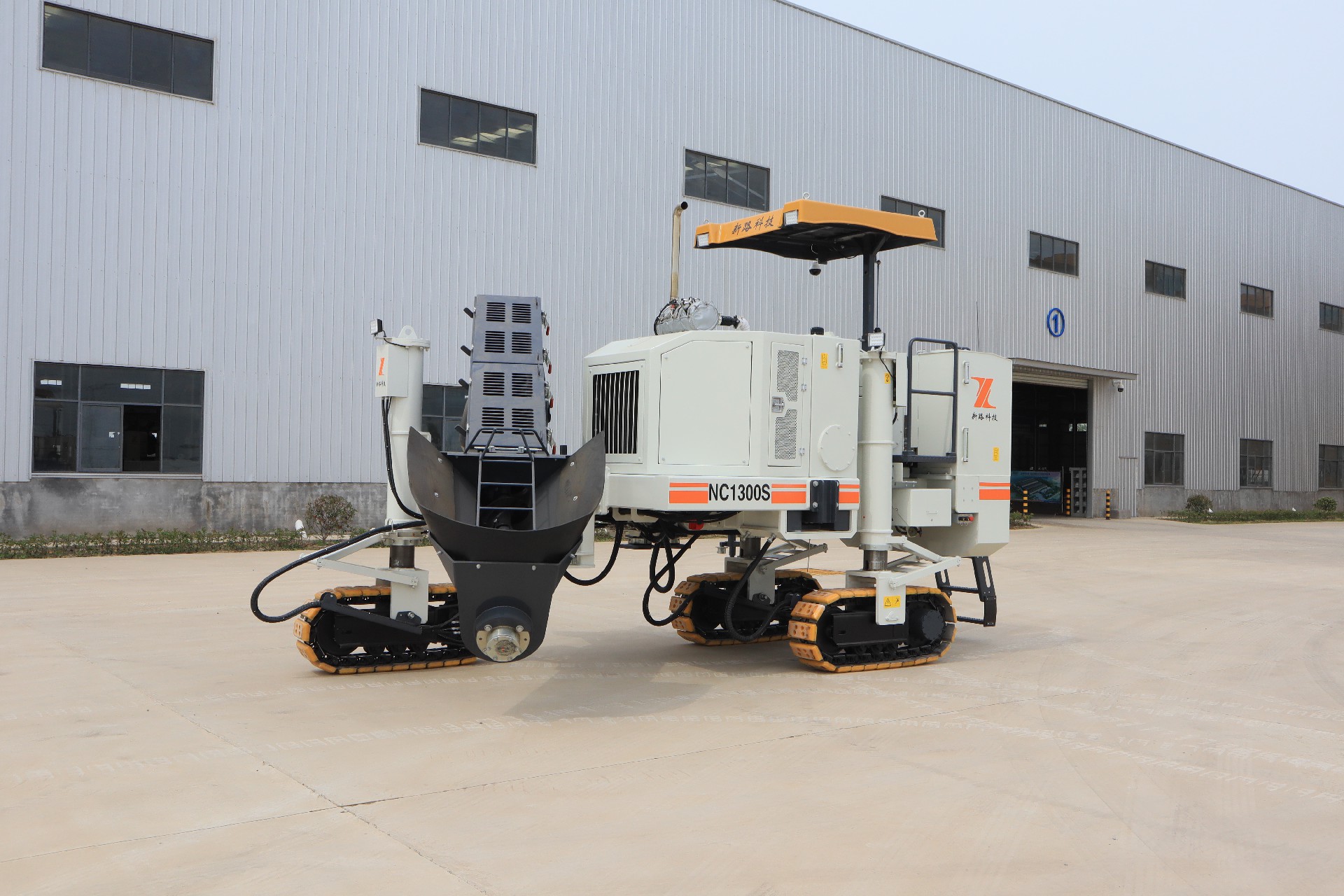

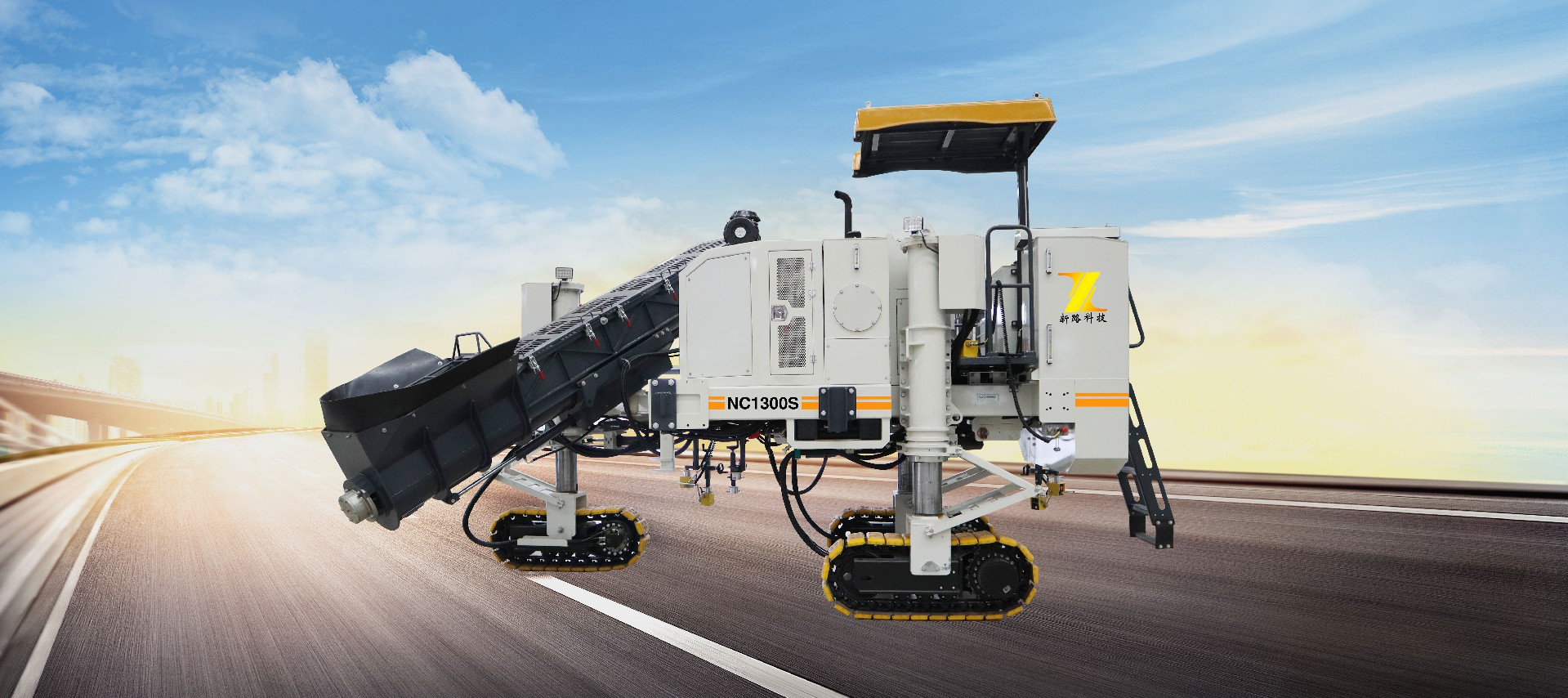

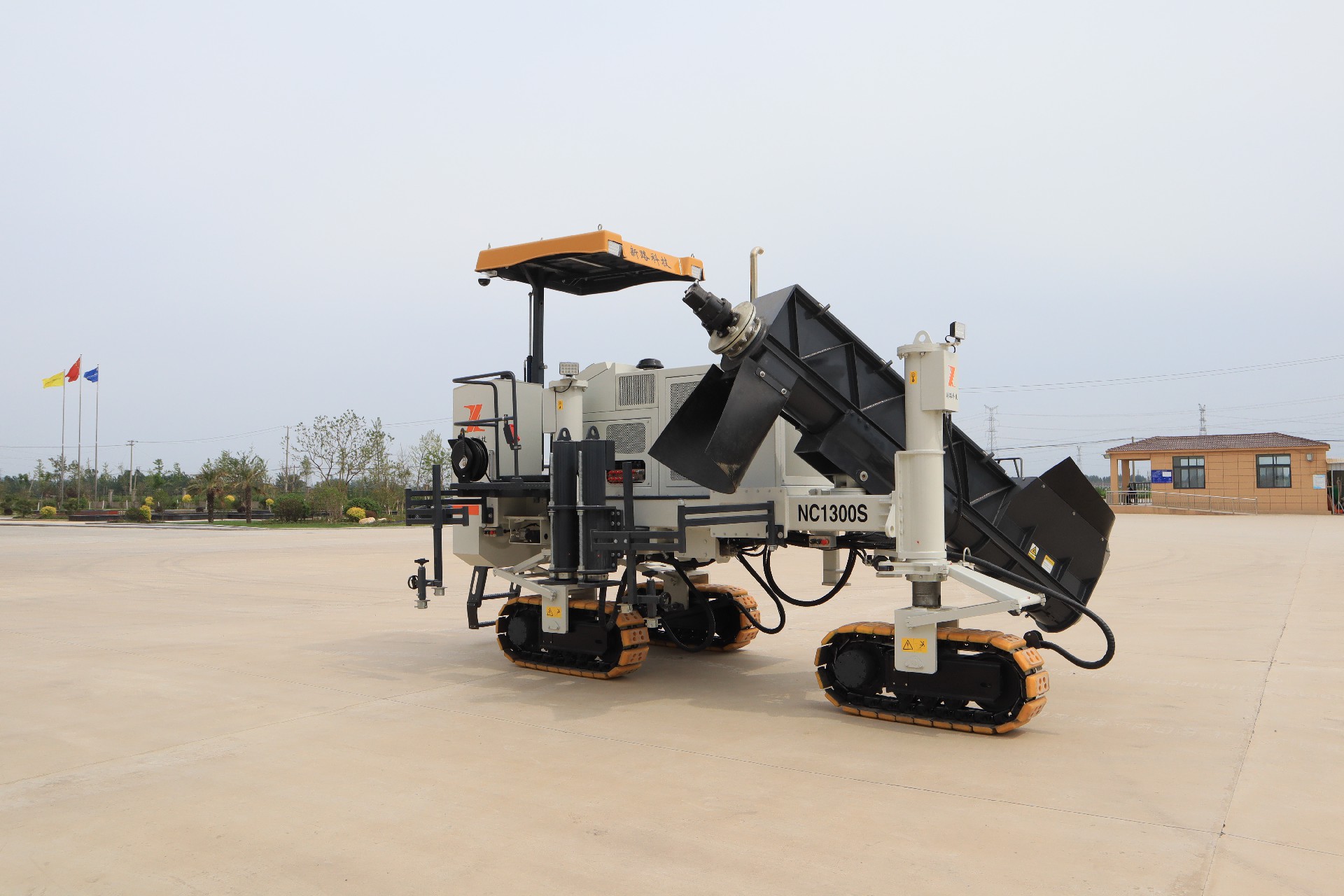

NC1300S Slipform Paver

NC1300S multifunctional slipform paver

Technical specifications


I. Overview

NC1300S s-shaped multi-functional slipform paver is a multi-purpose cement concrete construction equipment independently developed by our company. It is multi-purpose and can realize various mold configuration methods. It is widely used in road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrail cement concrete structures, farmland water conservancy channels and other construction fields. It replaces the traditional process and significantly improves the construction quality and speed of cement concrete structures.

It features a large power reserve, full electronic control, full hydraulic power drive, proportional control, three-track traveling, automatic steering and leveling control system, and can complete the technological processes of vibrating, paving, and extrusion forming of cement concrete structures at one time.

II. Main Technical Parameters

1. Basic performance parameters

Maximum side paving height 1300mm

Maximum paving width 2000mm

Paving speed (0~15) m/min

Running speed (0~35) m/min

2. Power system

Engine model       YCF36125-T482 (Yuchai)

Rated power/speed      92kW/2200r/min

Diesel tank capacity      360 L

3. Traveling system

Three tracks (one in front and two in rear), hydraulic independent drive, proportional control two-speed motor, planet-gear speed reducer, closed-loop control of paving speed, PID adjustment

Track width      300mm

Track length        1600mm

Climbing capacity      ≥25%

4. Outrigger steering lifting device

The front track steering gear is equipped with a displacement sensor for accurate proportional control; hydraulic proportional control of outrigger lifting

Minimum turning radius      4200mm

Hydraulic lifting stroke of outrigger   915mm

Mechanical adjustment stroke of outrigger  280mm

5. Hydraulic system

Load-sensitive double-pump hydraulic system, proportional control traveling, outrigger steering lifting, vibrating rod and auger feeding

Hydraulic oil cooling    Large-size radiator and forced air cooling

Hydraulic oil filter    Equipped with oil suction filter and oil return filter with a filtering accuracy of 10μm

Capacity of hydraulic oil tank  240L

6. Electrical control system

Humanized design of the console, man-machine interaction control panel, clear graphic identification mark, 24V-voltage power supply system

Equipped with two longitudinal slope sensors, one tilt sensor, and one steering sensor

Electronic automatic control is adopted for longitudinal slope, tilt, and steering sensors, and CAN bus is adopted for the communication between the sensors and controller

Equipped with IoT platform, construction management and monitoring system, and alternative remote control device

7. Auger feeding device

The hydraulic motor drives the reducer, and the tilt and extension of the auger feeding device are adjusted through hydraulic pressure

Auger speed       (0~80) r/min

Size of auger feeding device   Length: 3700mm; blade diameter: 340mm

8. Vibratory compaction system

Imported hydraulic vibrator, with independently adjustable vibration frequency and proportional control

Vibrating rod interface    6

Vibrating rod frequency    (0~200) Hz

9. High-pressure flushing device

    Hydraulically driven high-pressure ceramic plunger pump, equipped with coiler and high-pressure flushing water gun,

    Water tank capacity     360L

10. Mold and mold fixing device

Various molds can be customized according to the needs of working conditions to meet the requirements of right-side paving and middle paving

Hydraulic horizontal stroke of mold fixing device     1000mm

Hydraulic vertical stroke of mold fixing device (double cylinders) 360mm

Mechanical vertical stroke of mold fixing device     240mm

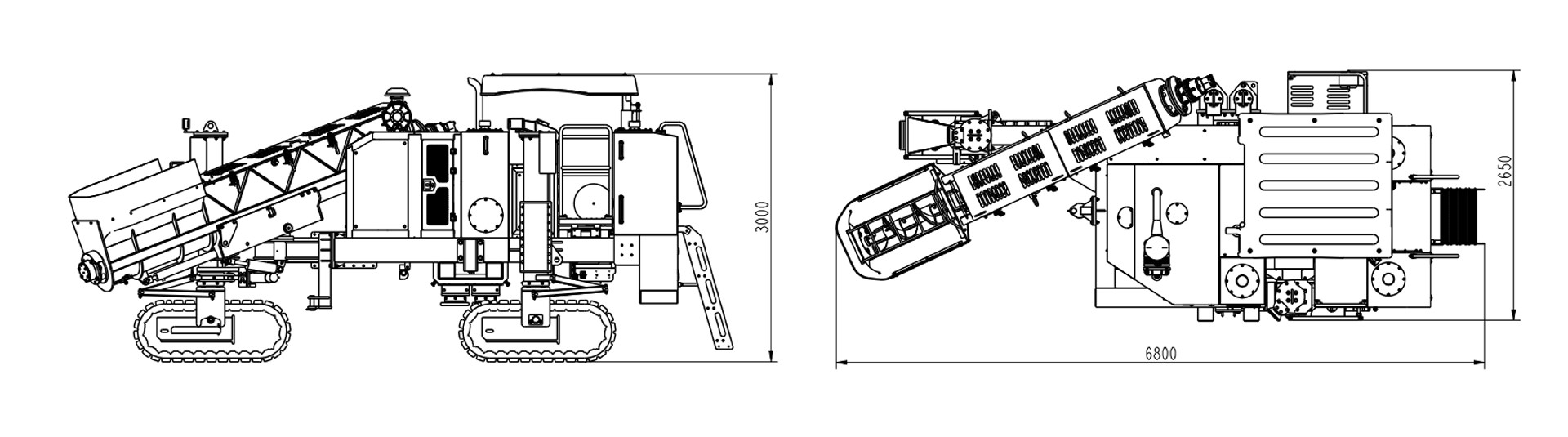

 11. Overall dimensions and weight (transportation status)

Transportation dimensions (length × width × height)   (6800×2650×3000) mm

Machine weight                             13000 Kg


III. Performance Characteristics

1. It is multi-purpose and can realize the accurate slipform paving of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrail cement concrete structures, and farmland water conservancy channels by getting various molds changed and the vehicle status accurately adjusted and controlled.

2. It has three-track traveling, hydraulic independent drive, proportional control two-speed motor, planet-gear reducer, closed-loop control of paving speed, PID adjustment to ensure low-speed paving stability and improve slipform paving quality; the front track steering device is equipped with displacement sensor for accurate steering.

3. Its engine has strong power and meets the ChinaIV emission standards; the hydraulic system is controlled by load-sensitive variables, and fuel is supplied according to the actual load size and speed, with low fuel consumption, energy conservation, and environmental protection.

4. Its humanized design of the console, man-machine interaction control panel, and clear graphic identification mark make the paver easy and free to be operated. The paver is equipped with an IoT platform, a construction management and monitoring system, and an alternative remote control device.

5. Hydraulic proportional control is adopted for steering lifting, and the vehicle is equipped with two longitudinal slope sensors, one steering sensor, and one tilt sensor. The sensors and the controller communicate with each other through the CAN bus to improve the response speed and stability of the equipment and ensure accurate linear control and realize superimposed paving.

6. According to the needs of working conditions, right-side paving and middle paving can be realized; the hydraulic horizontal and vertical bidirectional adjustment is adopted for the mold fixing device and various molds can be quickly replaced.

7. The tilt and expansion of the auger feeding device are hydraulically adjusted, which is convenient to be operated and suitable for various working conditions. The storage space is large, which can realize the secondary mixing of cement concrete.

8. The structure of the whole machine is compact, which is suitable for container transportation.

IV. Statement

The Company adheres to the principle of sustainable development, so we reserve the right to continuously improve the products without previous notice. The content is subject to continuous improvement without notice.
